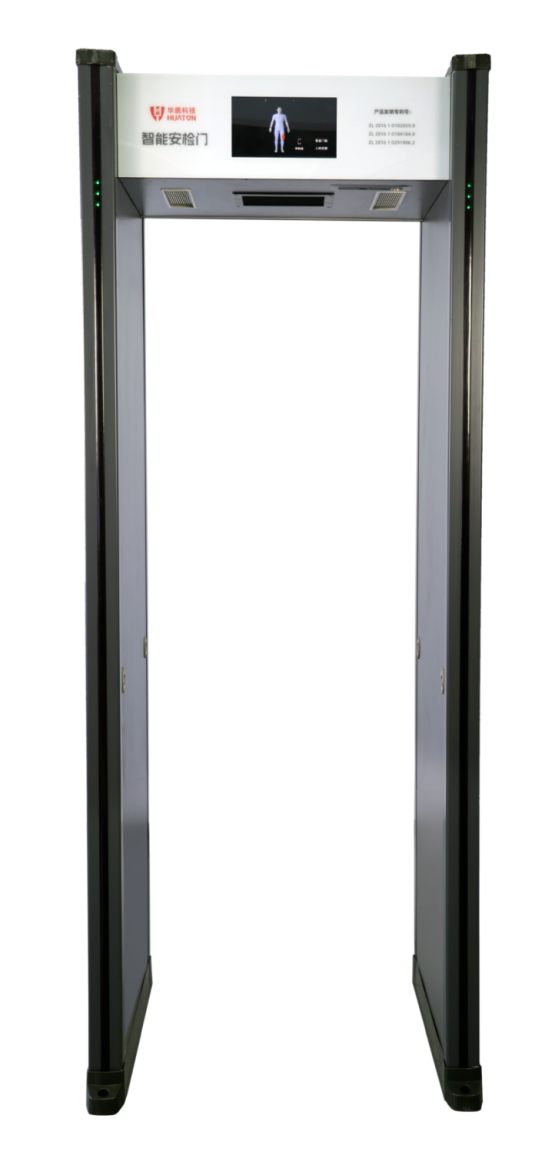

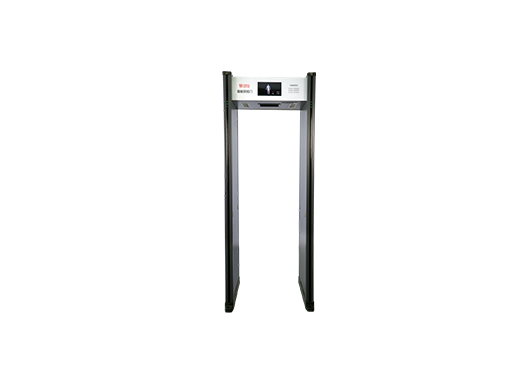

Product Overview

The WMD300 utilizes metal classification and identification detection technology, along with our company's self-developed intelligent algorithm, to achieve two-dimensional metal recognition. It can accurately detect and locate whether individuals are carrying mobile phones or other prohibited items while filtering out daily metal objects carried by the subjects.

Key Features

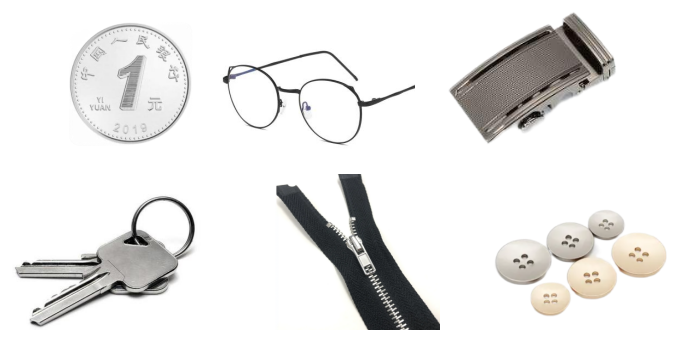

1. Intelligent Exclusion：It can exclude the interference from daily items such as non-gold and silver jewelry, coins, glasses, belt buckles, keys, metal zippers, metal buttons, etc., and will not give an alarm for such personal daily items.

2. Detection range

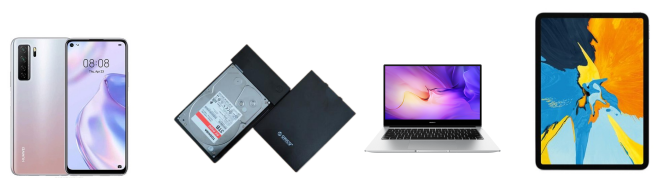

Mode1:Electronic Product Detection Mode: It can detect confidential electronic products such as mobile phones (in both the power-on, power-off, and flight mode states), external hard drives, laptops, iPads, digital cameras, video cameras, and some voice recorders (regardless of whether they have a battery or not).

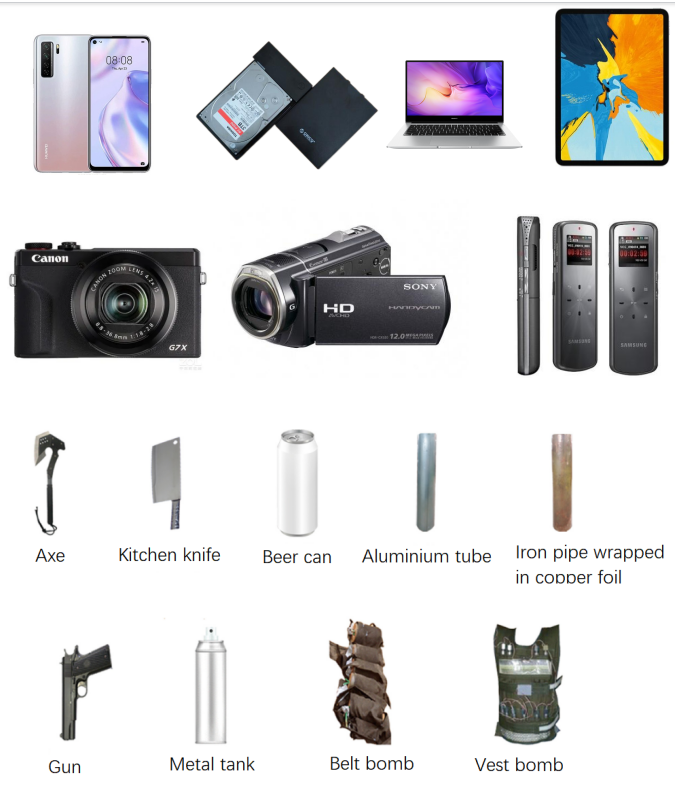

Mode 2: Electronic Product + Contraband Detection Mode: It combines the Electronic Product detection mode with the detection of items such as knives, guns, metal cans, metal tubes, etc

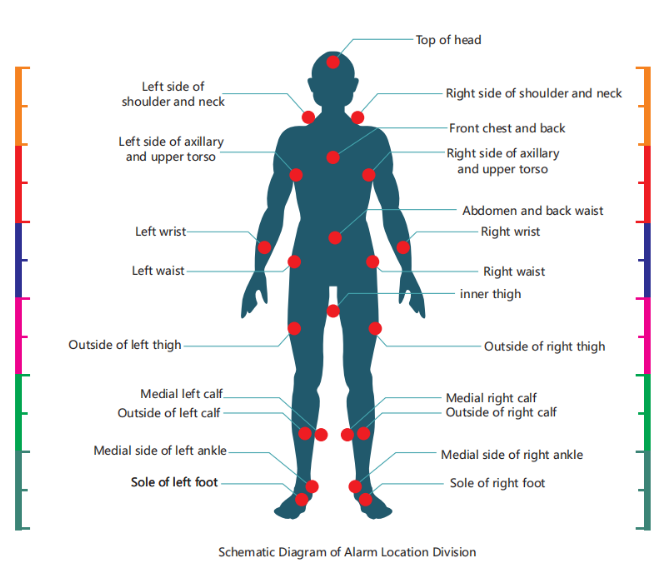

3. Configured with more than 25 detection and alarm zones.It can detect concealed cell phone on any part of the person, especially the easy-to-miss zone such as on thehead, in the armpits, on the abdomen, on the inner side ofthighs, and the innerside of calf, on the soles of the feet.the back of body etc.

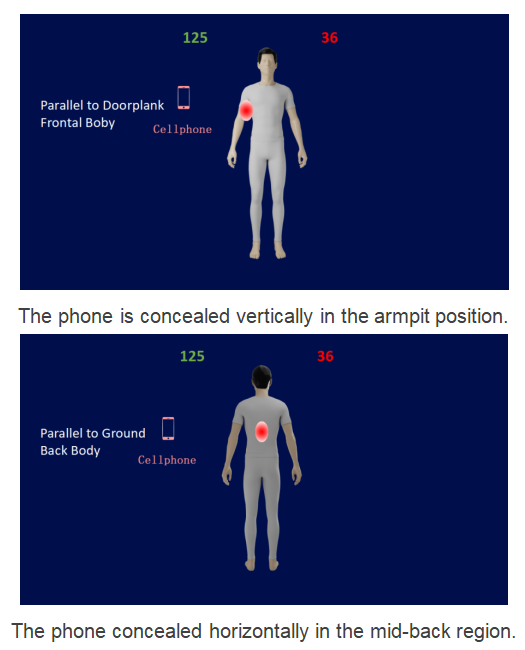

4. When the detector detects a cell phone, it will emit an audible and visual alarm, and can display in text and pictures whether the cell phone is hidden on the front or back of the body, as well as the position and posture of the cell phone when it is hidden, such as horizontally, vertically, longitudinally, etc.

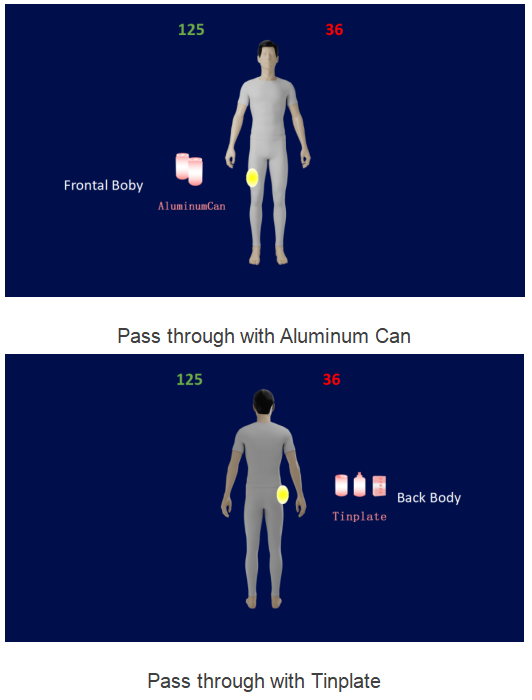

5. The detector can also detect other prohibited metals such as knives, guns, tin cans, and aluminum cans. The user can choose whether to activate the alarm for these items or not. If the alarm for such items is not needed, a reminder will be given by means of a yellow light, and the material and shape of the detected items will be displayed on the liquid crystal display screen.

6. The device also offers a hybrid detection mode to prevent mobile phones from entering restricted zones alongside other items. For instance, it will sound an alarm if weapons like knives or guns are concealed with phones (with selectable display modes: "phone + weapon" or "phone-only" visuals).

7. The device is equipped with a 10-inch LCD screen. Support quick setting and parameter adjust via the “SET” LCD with touch panel.

8. specification parameters

External Dimensions）：≈2230(H）*860（W）*650（L）mm

（Weight）：≈100KG
