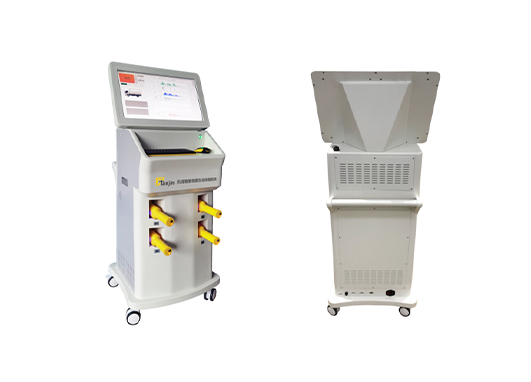

Product Overview

The micro-vibration life detection system is developed for prisons, drug rehabilitation centers, detention centers, and other venues to assist in vehicle safety inspections. It uses "micro-chip detection terminals adsorbed on the vehicle to collect subtle vibrations caused by vital signs (such as heartbeat, breathing, pulse, body movement, etc.), and uses system algorithms for intelligent analysis to determine whether there are hidden living beings in the vehicle. This significantly improves the efficiency of police officers in preventing escapes and illegal transportation during vehicle safety inspections.

The new wireless intelligent micro-vibration life detection system independentizes each detection module and adopts wireless signal transmission technology with a long effective distance. It eliminates the need for physical wiring, freeing users from the tedious operation processes of previous inspections (cable laying, deployment, and arrangement), thus reducing the workload of police officers.

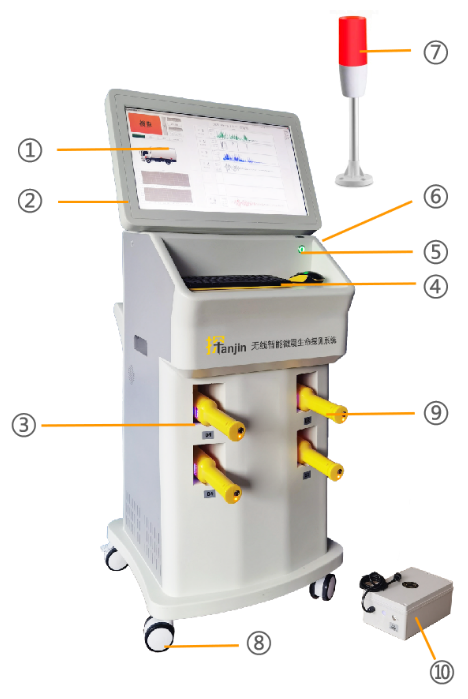

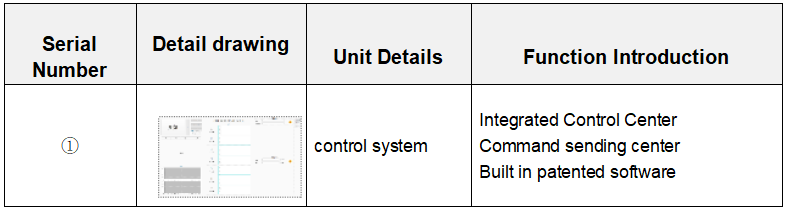

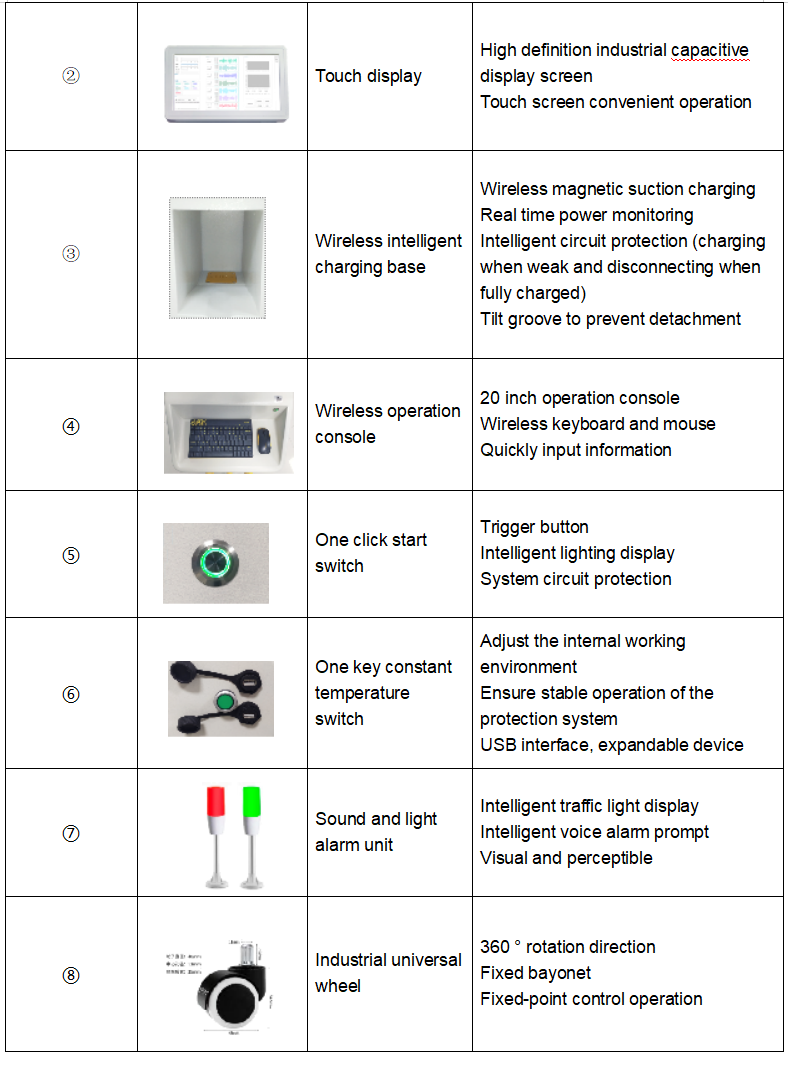

Product Configuration Units

Product Technical Parameters

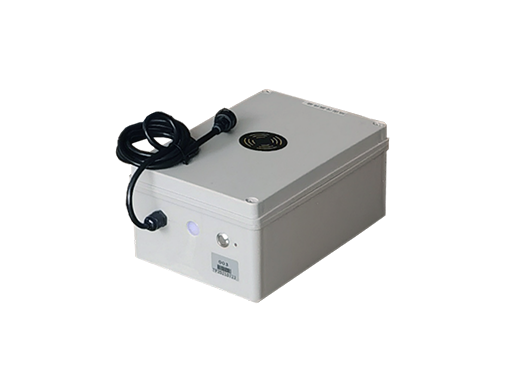

① Equipment composition: The equipment consists of wireless vehicle micro - seismic sensors, wireless ground micro - seismic sensors, industrial computer all - in - one machines, etc.

② Industrial computer configuration: 3.10GHz Intel i5 processor; 4GB of RAM; 256GB of built - in storage; Windows 10 64 - bit operating system.

③ Expansion interfaces: Equipped with 2 USB interfaces, 1 RJ45 interface, and 1 power interface.

④ Mobile convenience devices: It has a push - type handle and a lift - type handle.

⑤ Power indicator lights: The system host has a power indicator light, and the system industrial computer has a power indicator light.

⑥ Vehicle and personnel detection and alarm:

When there are people on the detected vehicle, the system detects and alarms. The alarm box turns red and displays "Search"; there is a continuous beeping sound for the alarm, and voice prompts are played; the intuitive visual warning light turns red.

When there are no people on the detected vehicle, the alarm box turns green and displays "Pass"; voice prompts are played for the alarm; the intuitive visual warning light turns green.

⑦ The maximum sound level generated by the alarm sound at a distance of 1m is 80dB(A).

⑧ Detection time setting: According to on - site use, the detection time can be set between 30s and 90s.

⑥ Detection time setting: According to on - site use, the detection time can be set between 30s and 90s.

⑦ The maximum sound level generated by the alarm sound at a distance of 1m is 80dB(A).

Product Features

① Diverse Vehicle Types

Supports detection of all vehicle types (small cars, medium-sized buses, large cabinet/box trucks).

② Convenient Detection

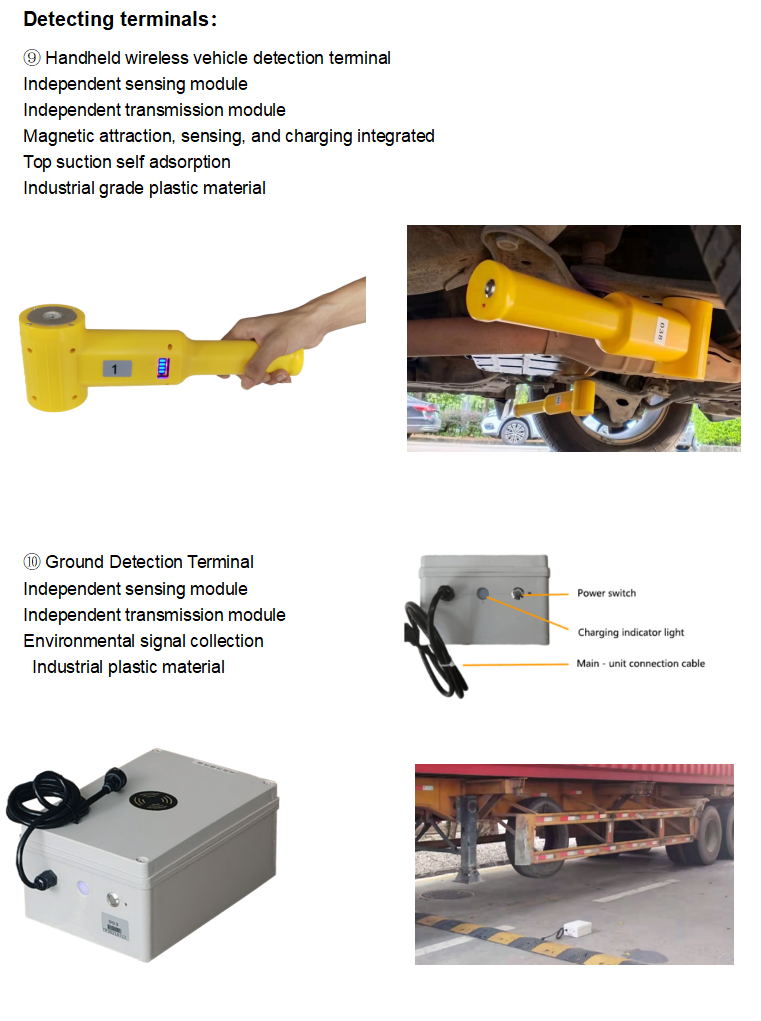

Inspected vehicles do not need to open doors or unload cargo. The detection terminal directly adheres to the vehicle chassis without wiring, ensuring easy operation.

③ Simple Operation

The human-machine interface is clear and intuitive, with an easy-to-learn operation process featuring one-click startup and one-click detection.

④ Multiple Alarms

Software interface alerts + audible and visual alarms, with intuitive red/green warning lights and automatic voice broadcasting of detection results.

⑤ Secure Transmission

Industrial-grade wireless RF technology ensures stable data reception.

Dedicated data encryption technology guarantees secure data transmission.
